How to Run Ethernet Cable Through Walls: A Step-by-Step Guide

How to Run Ethernet Cable Through Walls A Step-by-Step Guide

Do you need to run ethernet cables through walls? If so, this guide is for you! In this step-by-step guide, we will walk you through the process of running ethernet cables through walls. We will provide tips and advice on how to make the process as easy and efficient as possible.

So, whether you are setting up a home office or just want to be able to connect your devices to the internet with ease, follow these steps and get the job done!

Decide Where to Run the Ethernet Cable

Before you can run your ethernet cable through walls, you first need to decide where you want to run it. This may depend on what devices you want to connect and where they are in relation to each other.

It is also important to consider the length of the cable, as this will affect the cost of materials and installation time.

If you are running Ethernet cables through walls for a home office setup then it may be a good idea to have one long cable that is run from your router or modem directly into each room so there are no loose wires hanging around. This can make things much easier when it comes to setting up your workspace.

Mount an Outdoor Rated Box on the Wall

Now that you have decided where to run your ethernet cable, it is time to mount an outdoor rated box on the wall. This will help protect the cables from any moisture or other elements that may cause damage over time.

You can use a drill with a hole saw attachment to make holes in drywall so they can fit snugly into place without having any gaps that could let water in which would ruin the cables inside.

Drill a Hole in the Wall

Now that you have decided where to run your Ethernet cable, it is time to drill a hole in the wall. This can be done with either a manual or electric drill, depending on your preference and level of experience.

When drilling into walls, it is important to use the correct drill bit size. The hole should be slightly smaller than the diameter of your Ethernet cable so that it fits snugly and does not move around.

Once you have drilled the hole, use a screwdriver or other sharp object to make a small incision in the center of the hole. This will make it easier to push the Ethernet cable through later on.

Run Your Cable Through Hole

Now that you have drilled a hole in the wall and created an incision, it is time to feed the Ethernet cable through. This can be done by either pushing or pulling the cable through until it comes out of the other side.

If the cable is too stiff to push or pull through, you can use a coat hanger or other thin object to help guide it through. Just make sure that you do not damage the cable in any way.

Seal the Hole Around Your Ethernet Cable

Once the cable has been fed through, it is important to seal the hole around your Ethernet cable. This can be done by either using silicone caulking or putting some expanding foam in and then letting it dry before capping off any excess material that may have escaped from underneath as well.

This will ensure there are no gaps left where water or other elements can get through and damage your Ethernet cables.

Connect the Ethernet Cable to Your Devices

Once the Ethernet cable has been successfully run through walls, it is time to connect it to your devices. This can be done by using the appropriate connector type for your device (RJ45, RJ11, etc).

If you are not sure which connector type to use, consult the user manual for your device or contact the manufacturer.

If everything has been installed correctly you should see that there are no issues with loading times or other errors when trying to connect online content such as videos or websites.

How do I run Ethernet cable through the attic wall?

There are a few ways to do this, but the easiest is probably to use a fishing line. Run the line from where you want your Ethernet cable to come out of the wall, through the hole in the attic floor, and all the way down to your computer or router.

Make sure that when you’re done, there’s enough slack between the wall and your computer/router so that you can easily pull out the Ethernet cable if needed. If there isn’t enough slack, then use a long piece of string or some duct tape to add more slack.

You should also make sure that wherever you run your Ethernet cable through the attic floor has no obstructions in its paths like insulation, wires, or pipes. If there are any obstructions, you’ll need to find a way to steer your Ethernet cable around them.

Once everything is in place, use a drill to make a small hole in the wall where you want your Ethernet cable to come out. Push the Ethernet cable through the hole and secure it with a plug or a screw. And that’s it! You’re all set to start using the Internet through your attic wall.

Tricks to running Ethernet cable

Always use the correct type of cable. This will ensure optimum performance and reduce the risk of errors.

When running cables through walls or ceilings, use fish tape to help guide the cable through. You can also use this method when running cables along baseboards or under carpets.

If you have to make a sharp bend in the cable, be sure to use a radius of at least four times the outside diameter of the cable.

If you are running cables through the conduit, make sure there is enough slack for future maintenance on both ends and that your runs don’t exceed 90 meters (295 feet). Also, keep in mind how much space each type of cable will require.

When terminating cables, always use the correct connector type and crimp it properly. Also, be sure to use a strain relief boot to protect the connector from damage.

Label each cable as you go so that you can easily identify them when making connections. This will save time and frustration later on.

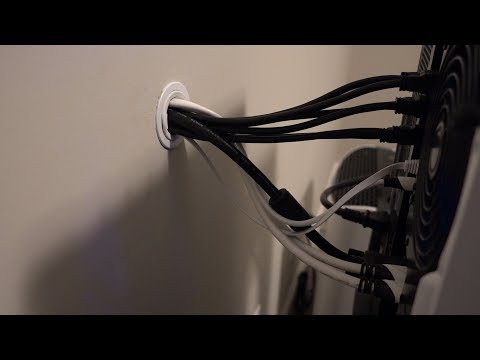

A computer in another room? Step-by-step guidance for running wires through the wall.
